產品特點
1、機身由雙螺旋和頂部噴霧系統組成。軸兩端采用了填料密封來提高密封性，防止軸兩端漏料；
2、特殊設計的排料機構，開門角度大，排料迅速，殘留量少；
3、密封性好，確保不漏料；
4、采用氣動(或電動)開門，移動準確可靠，密封性好。
主要技術及性參數
型 號 參 數 | SLHY0.6 | SLHY1 | SLHY2.5 | SLHY5 | SLHY7.5 | SLHY10 |
有效容積(m3) | 0.6 | 1 | 2.5 | 2.5 | 7.5 | 10 |
每次混合量 | 250 | 500 | 1000 | 2000 | 3000 | 4000 |
混合時間 | 3-5 | 3-5 | 3-5 | 3-5 | 3-5 | 3-5 |
出料時間 | 5 | 5 | 5 | 5 | 55 | 5 |
混合均勻度(cv≤%) | 7 | 7 | 7 | 7 | 7 | 7 |
裝機功率 | 5.5 | 11 | 18.5 | 30 | 37 | 45 |
SLHY Series Ribbon Mixer

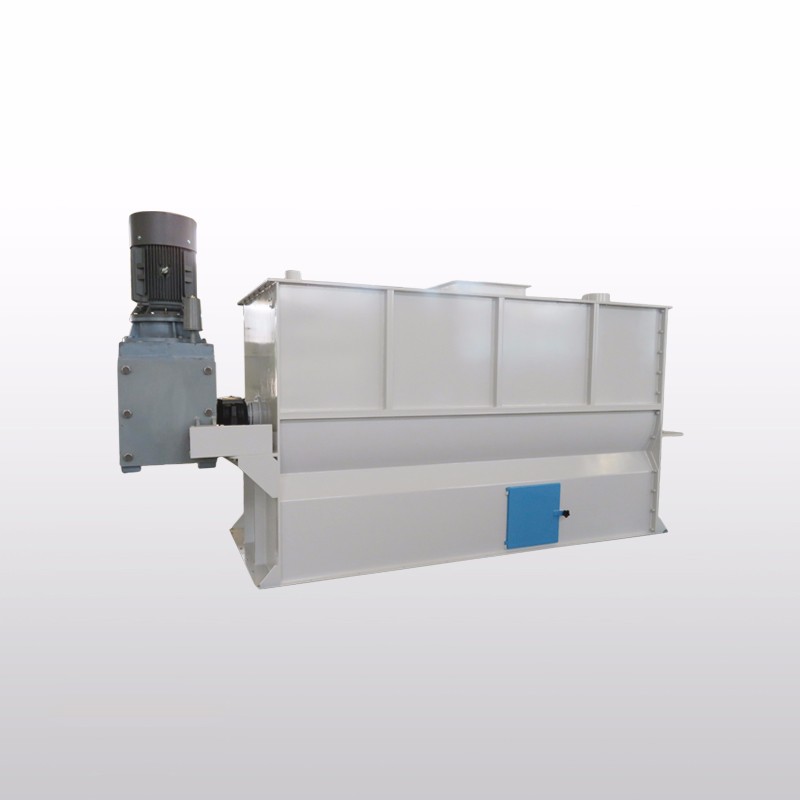

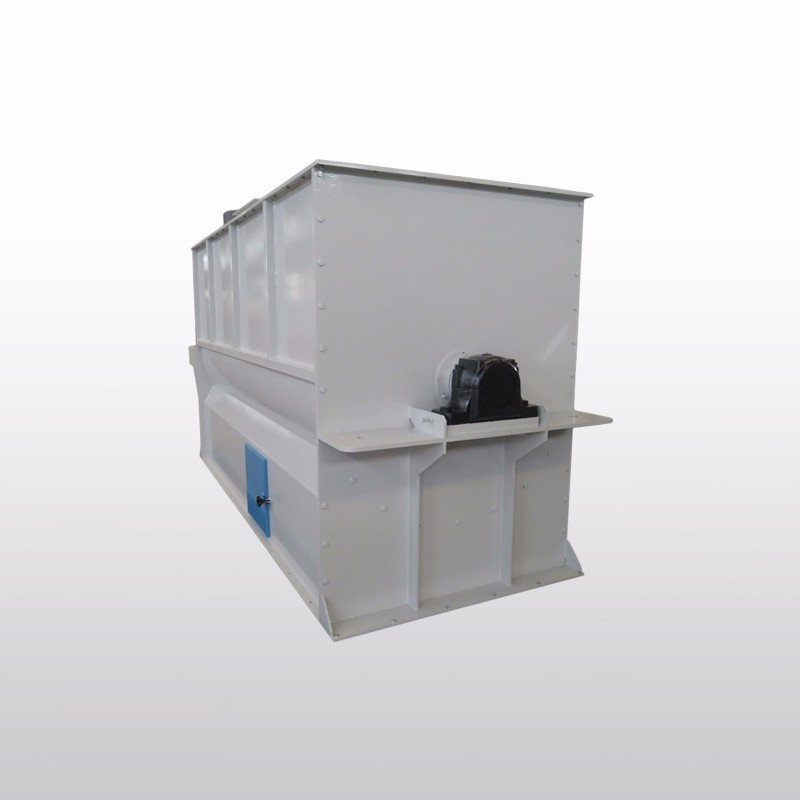

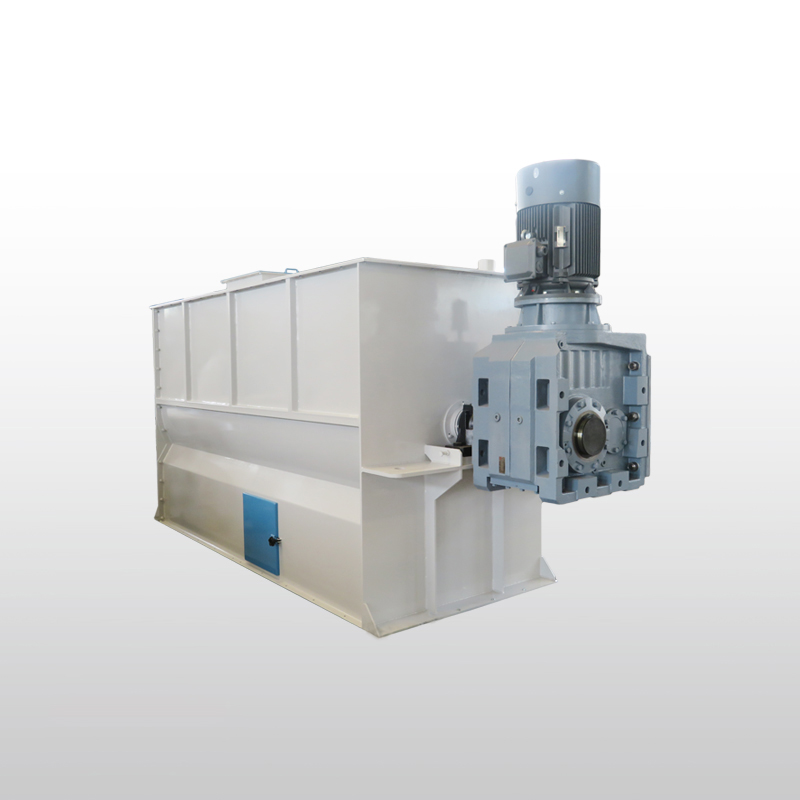

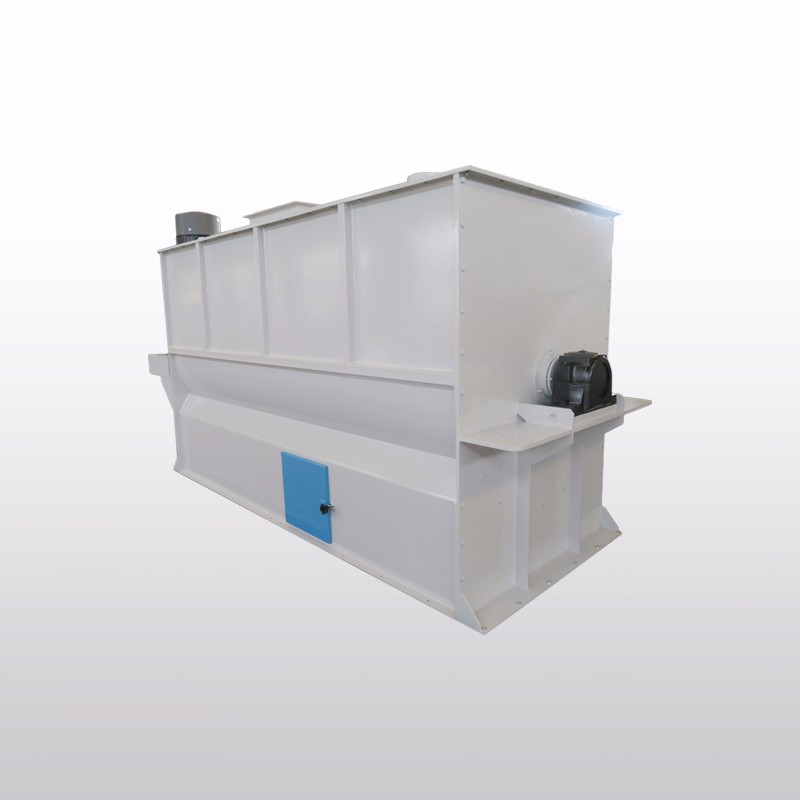

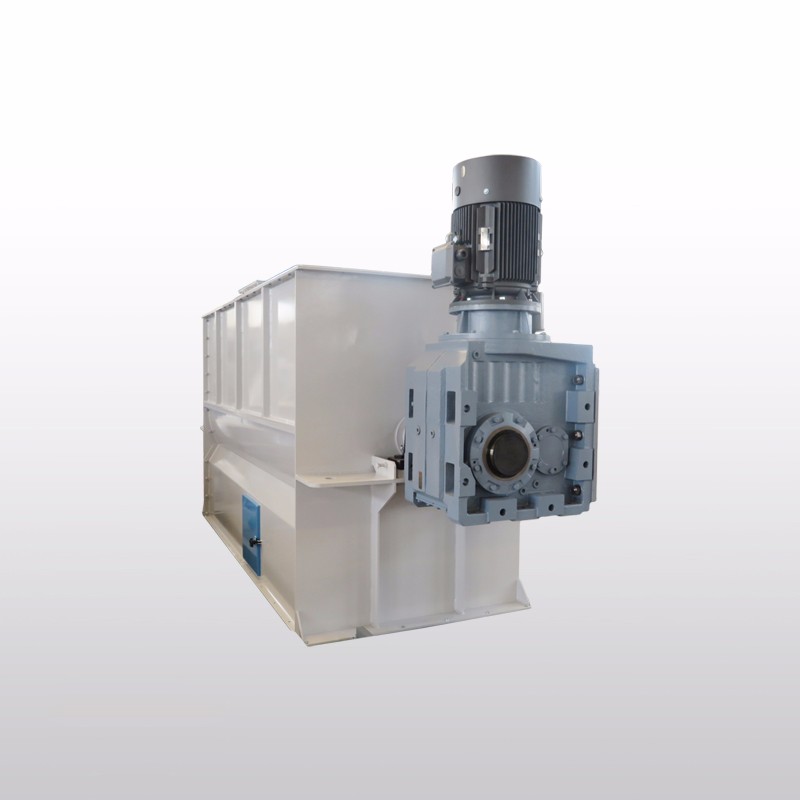

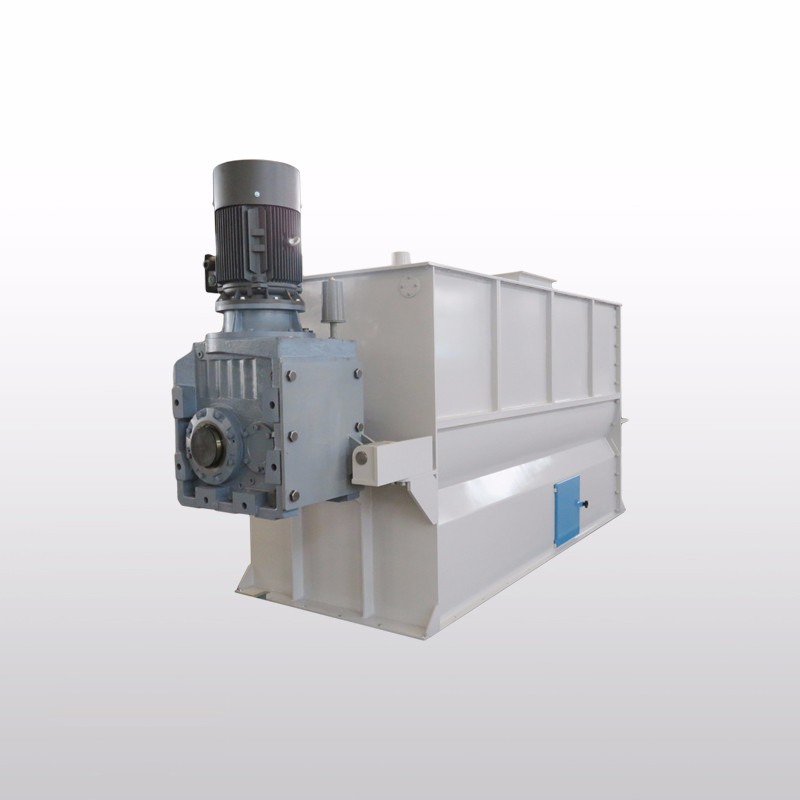

SLHY系列螺旋混合機
Features
1. The mixing chamber is constituted by twin screws and atomizing system. The filling seal is adopted for ends of shaft to improve tightness and prevent from leaka≥
2. Specially designed discharger has big door-opening angle and quick discharging with little residue;
3. Good tightness and no leaka≥
4. Pneumatic or electric driven discharging is used with correct, stable move and good tightness.
Main Technical Features
Model Parameters | SLHY0.6 | SLHY1 | SLHY2.5 | SLHY5 | SLHY7.5 | SLHY10 |
Volume(m3) | 0.6 | 1 | 2.5 | 5 | 7.5 | 10 |
Capacity /Batch(kg) | 250 | 500 | 1000 | 2000 | 3000 | 4000 |
Mixing Time(min) | 5-6 | 5-6 | 5-6 | 5-6 | 5-6 | 5-6 |
Discharging Time (s) | 5 | 5 | 5 | 5 | 5 | 5 |
Homogeneity (cv≤%) | 7 | 7 | 7 | 7 | 7 | 7 |
Power(kw) | 5.5 | 11 | 15/18.5 | 30 | 37 | 45 |
